Overview

Nylon idler

Nylon roller: low friction coefficient, wear resistance, not easy to damage the belt. Excellent self-lubrication, in the process of use, without oil injection and can operate in harsh environmental conditions, not easy to jam, with good anti-magnetic characteristics. Corrosion resistance, strong anti-aging, corrosion resistance to weak acid, weak alkali and organic solvents, non-toxic and non-pollution can withstand repeated shock and vibration. Nylon roller itself light weight, only one third of the metal parts, easy installation, low maintenance rate, low noise, smooth operation, energy saving, can improve the service cycle nylon roller dust, waterproof performance is good, used in a multi-ash environment, not easy to water.

Product characteristics

1, nylon roller has high wear resistance, very low friction coefficient, not easy to wear the belt;

2, nylon roller has excellent self-lubricity, no oil injection, it is not easy to stick in harsh conditions;

3, nylon roller has anti-static, anti-smouldering, anti-aging, anti-chemical (acid, alkali and organic solvent) corrosion;

4, can withstand repeated shock, vibration;

5, nylon roller use environment temperature range: -40℃ ~ 80℃;

6, excellent mechanical properties, light weight, easy installation, no maintenance;

7, nylon roller low noise (3-7DB) smooth operation, long life (3-5 times the life of metal roller)

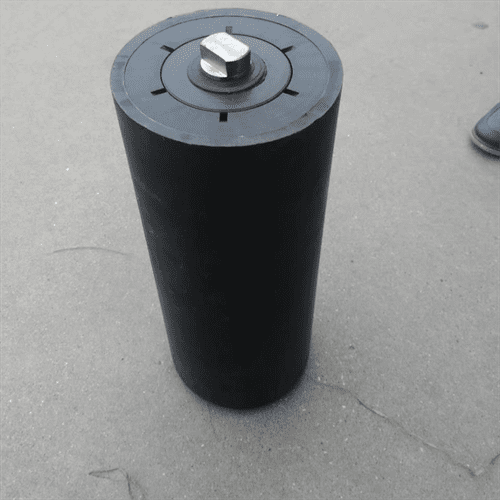

High molecular weight polyethylene idlers

The material characteristics of high molecular weight polyethylene rollers are wear resistance, impact resistance, self-lubrication, corrosion resistance, impact absorption energy, low temperature resistance, health and non-toxic, not easy to adhere to, not easy to absorb water, and small density.

Different from metal rollers, we use ultra-high molecular weight polyethylene (UHMW-PE), which has the best mechanical and physical properties among engineering plastics, as a material to make roller faces and seat covers. Compared with traditional materials, it has outstanding advantages in performance.

The molecular structure of high molecular weight polyethylene is a winding linear arrangement, so its impact resistance is extremely high. Acting on the roller, it will not break due to long-term rotation, fall or impact. The friction coefficient of high molecular weight polyethylene products is very small, similar to the ice surface. As a roller surface, it can effectively reduce the friction with the belt surface, thus extending the service life of the belt. Good wear resistance, is the best wear resistance of all engineering plastics. Experimental data show that its wear resistance under relative conditions is 5-7 times that of carbon steel or stainless steel. This alone makes its service life more than three times longer than that of steel rollers. Good corrosion resistance. At normal temperature, any concentration of acid, base, salt, sulfur and other corrosive media are difficult to produce chemical reactions with. As a roller, do not have to worry about corrosion, rust problems. Water absorption is very low (0.01%), so its own adhesion resistance is excellent, even in the water or oil medium, dust will not stick on its surface, scaling. As a roller, one does not have to worry about the surface of the adhesive material and bite the belt, and the other does not have to worry about the rotating resistance due to the scaling of the rotating part. The specific gravity is very light, only about 0.94, which is 1/8 of carbon steel. As a roller, the installation and replacement is easy and convenient, and the operation is noiseless, reducing the working intensity and purifying the working environment. With double resistance (antistatic, halogen-free flame retardant) characteristics (MT558.1-2005), applied in coal mines and other special environment, safety can be guaranteed.

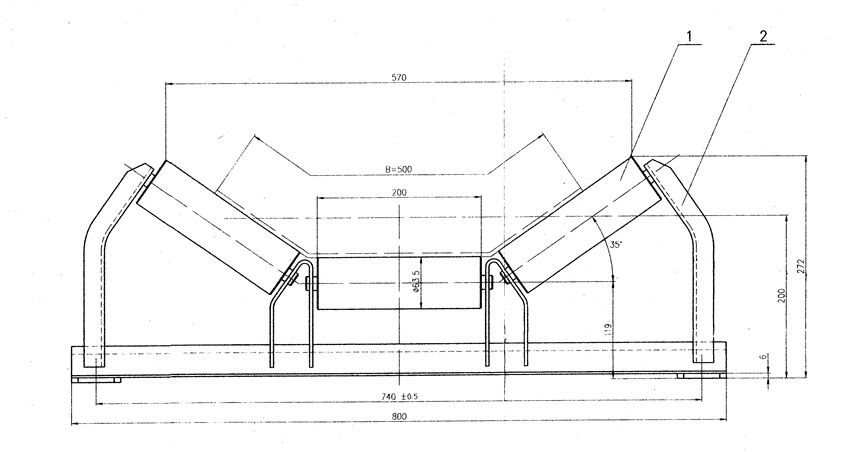

The conveyor carries the rollers

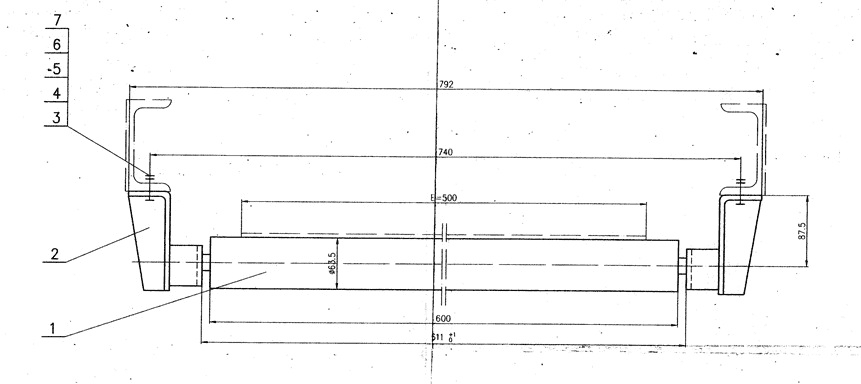

Conveyor return rollers

Instructions for use

1. The appearance of the roller should be carefully checked for serious bump and damage before use, and the rotating roller should be flexible without jamming.

2. The installation distance of the roller should be determined by scientific calculation depending on the type of logistics and the characteristics of the conveyor, so as to avoid too sparse or too dense installation.

3. Roller installation should be adapted to avoid friction between each other.

Maintenance

1. The normal service life of rollers is more than 20000h, generally do not need maintenance. However, according to the size of the use site and load, the corresponding maintenance date should be formulated.

Timely cleaning oil injection maintenance, timely cleaning floating coal, etc. Rollers with abnormal sound and do not turn should be replaced in time.

2. When replacing the bearing, the opening of the bearing cage must be outward. After the bearing is loaded into the roller, proper clearance should be maintained, and it should not be crushed.

3. Labyrinth seals should be made of original parts, which should be installed in rollers respectively when assembling, and should not be assembled together.

4. When using the roller, avoid heavy objects from hitting the roller tube body.

5. In order to ensure the sealing performance and service performance of the roller, it is forbidden to disassemble the roller at will

Application/field of application

Mine roller:

Ordinary roller: grain, loading and transferring

Trough rollers: coal, cement, electricity

Trough type aligning idlers: Metallurgy. Mining, power, cement, chemical, building materials, steel mills, transportation equipment.

Drum roller: metallurgy, chemical industry, coal, building materials

Ground roller: Applicable field mining

Stop roller, vertical roller: applicable scope conveyor

Hanging roller: Applicable to belt conveyor

Backstop roller: Applicable field metallurgy. Mining, electricity, cement, chemical industry, building materials, steel

Spiral rollers:

1) Screw roller: Applicable scope Coal, electric power, metallurgy, chemical industry, building materials,

2) Spiral cleaning roller: applicable scope of coal mine machinery

3) Two-way spiral rubber roller: suitable for conveyor, packaging machinery, food machinery, mining equipment, other

Parallel rollers:

1) Parallel upper roller: parallel lower roller: Scope of application port transport terminal, mine transport, mechanical equipment

2) Parallel upward core roller. Parallel down core roller: Applicable scope to prevent belt deviation

Comb roller: mine, wharf, coal, power plant, coking, export trade

Conical roller:

1) Cone upward core roller: Applicable fields port, power, coal mine, machinery factory, grain transportation, chemical industry

2) Cone down core roller: Applicable fields port, electric power, coal mine, machinery factory, grain transportation, chemical industry

Friction roller: metallurgy, chemical industry, coal, building materials

1 Friction lifting core roller. Friction reducing core roller: applicable scope conveying machinery

Buffer roller: Applicable to power plant, cement plant

Rubber ring buffer roller: Applicable scope roller special

Parallel buffer roller: applicable to coal mine

Adjustable groove Angle double spring buffer roller group: applicable scope port transport wharf, mine transport, mechanical equipment

Spring plate buffer roller: applicable range conveyor

Three articulated rollers: Coal mine, wharf, export trade, conveyor
